10 Poles Unipolar Terminal Blocks

Antong’s 10-pole unipolar terminal block enables safe, isolated connections for multi-line wiring. Designed with screw terminals and durable housing, it’s ideal for control systems, lighting panels, and low-voltage distribution boxes.

  • ItemNo

    SP012.20~SP012.24
  • Contact Material

    Brass
  • Termination Method

    Screw Down
  • Working Temperature

    -30℃ to 110℃
  • Material

    PA66
  • Number of Ways

    10
  • Inserts

    Brass
  • Housing

    PA66
  • Screws

    Brass
10 Poles Unipolar Terminal Blocks

•Recessed screws and tubular contacts provide added safety and help prevent short circuits

• Tubular contacts connect stripped, un-terminated solid or stranded wire directly to each contact

• Integrated wire protectors prevent twisting and breakage of stranded wire during connection

Product Attributes

BrandSafetypass
Style/feature10 Poles Unipolar Terminal Blocks PA66
ApplicationCable
Means of connectionScrew fixed
Shell plastic material PA6: Polyamide66
PA66  featuresGood insulation, heat resistance, fire-resistance
Number of poles10
Conductor MaterialBrass
Screw MaterialBrass
Rated Voltage (V)450V
Number of Contacts10
Working Temperature-30℃ to + 110℃
Color Gray / Blue / White/White+Black
Production ProcessInjection molding
Type of productionManufacturing

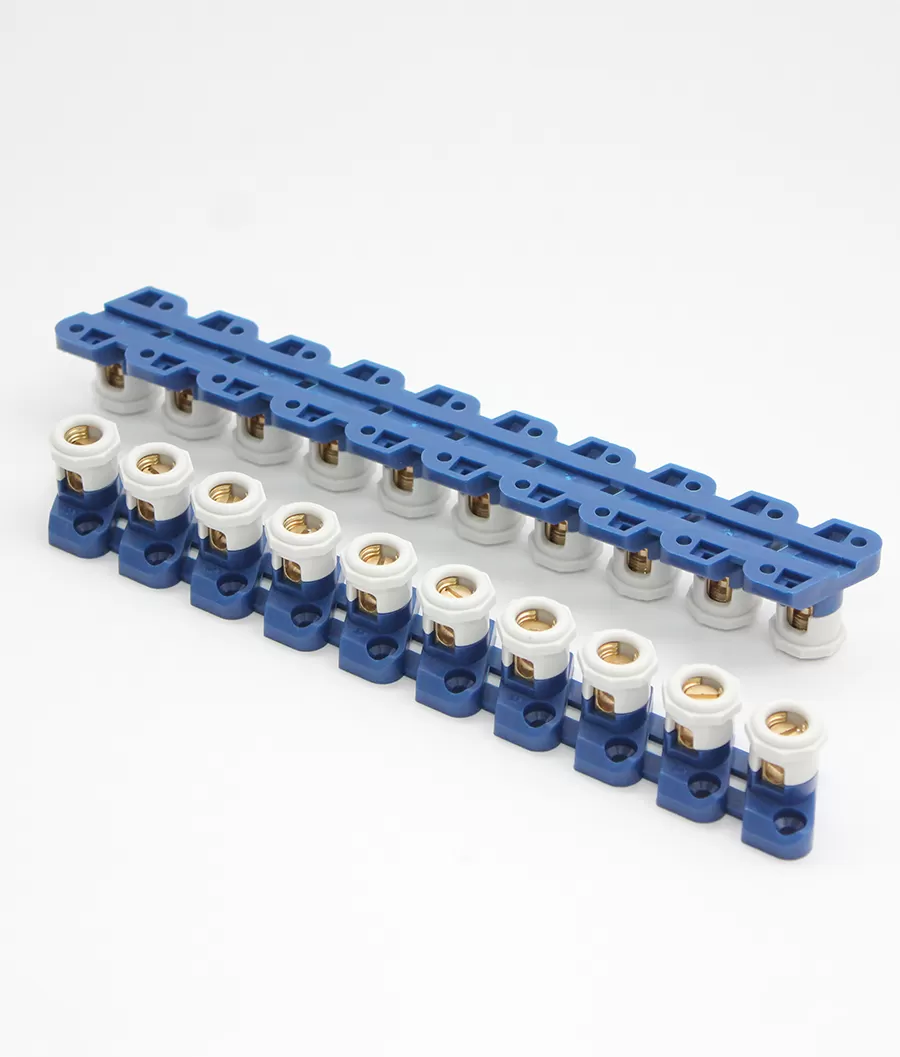

10 Poles Unipolar Terminal Blocks(pic1)

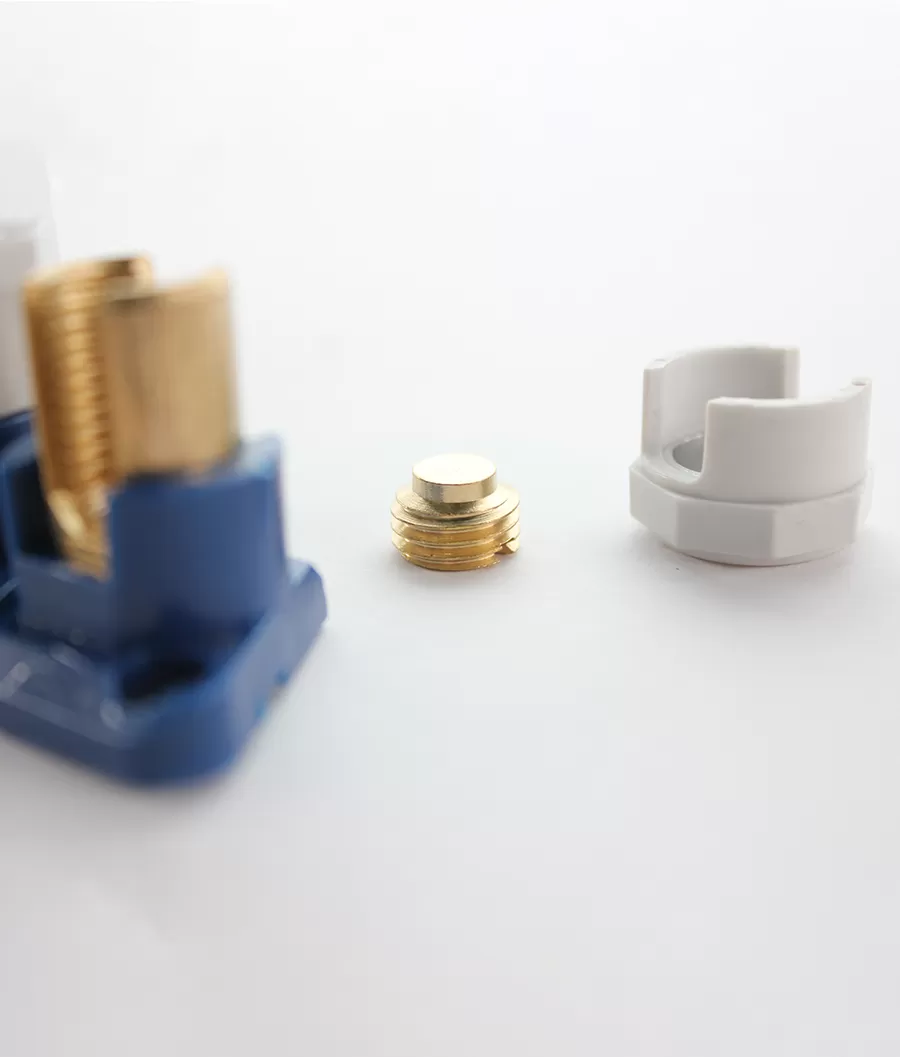

10 Poles Unipolar Terminal Blocks(pic2)

Supply Ability & Additional Information

Productivity500,000PCS/Year
TransportationOcean,Air
Place of OriginChina
Supply Ability6,000,000PCS/Year
PortNingbo, Shanghai Port
Payment TypeT/T
Incoterm FOB,EXW,CIP

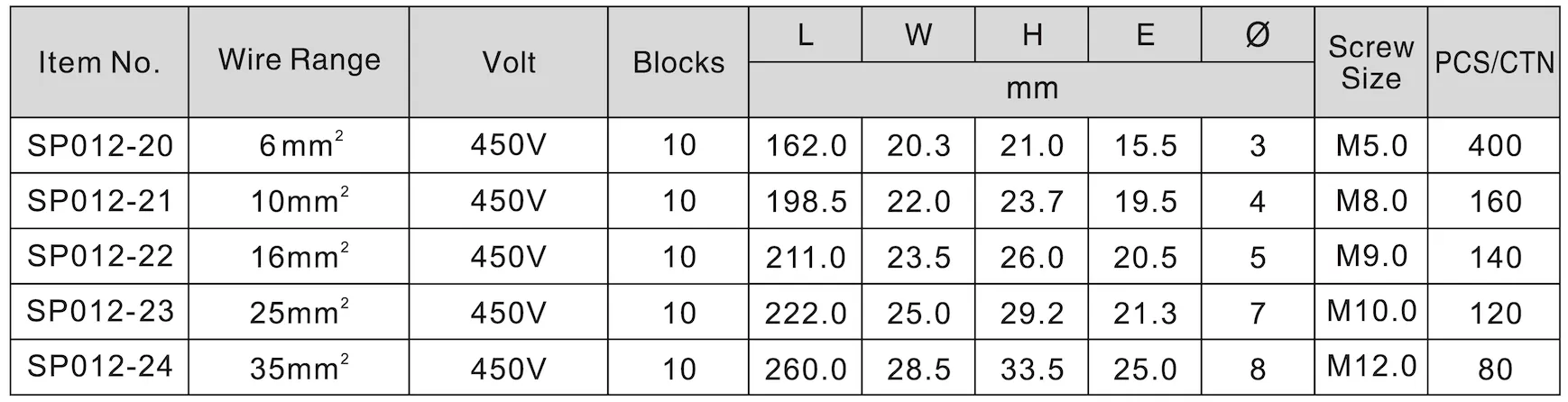

10 Poles Unipolar Terminal Blocks(pic3)

Frequently Asked Questions

1. Can I ask for sample?

Sure thing! Just let your sales consultant know which sample you need and your address, we will arrange rest of things for you.

2. If I want get a products price list, where I can get it?

Very sorry to tell you we are not allowed to provide full price list to any client due to company regulation, but also some reasonble facts.

Products prices are based on various raw material price, but those raw material prices are always unstable at all, so the price wouldn’t be fixed alll the time. Our sales will be very gladly to update product price with any potential client from us.

3. My product needs put our own logo on product or packing, what should I do?

If you want print/stick own logo on products or packing, please firstly let your sale consultant know it, and the sales will confirm it with our technician from factory side. Without any technique difficulty, you can provide related logo documents to us.

4. How many years Antong starts operate factory to produce terminal blocks?

Since 1989, AnTong has started factory operation, it’s almost 35 years.

5. What’s the process to develop a new product with Antong?

Step 1: Send picture/drawing to your service representative to confirm if we can produce it based on current technique we have.

Step 2: After make sure we can produce the item, we will quote mold fee MOQ of this new products.

Notes: If there’s an exist product with client, we we prefer client send sample to us due to provide more accurate price quotation and material identification.

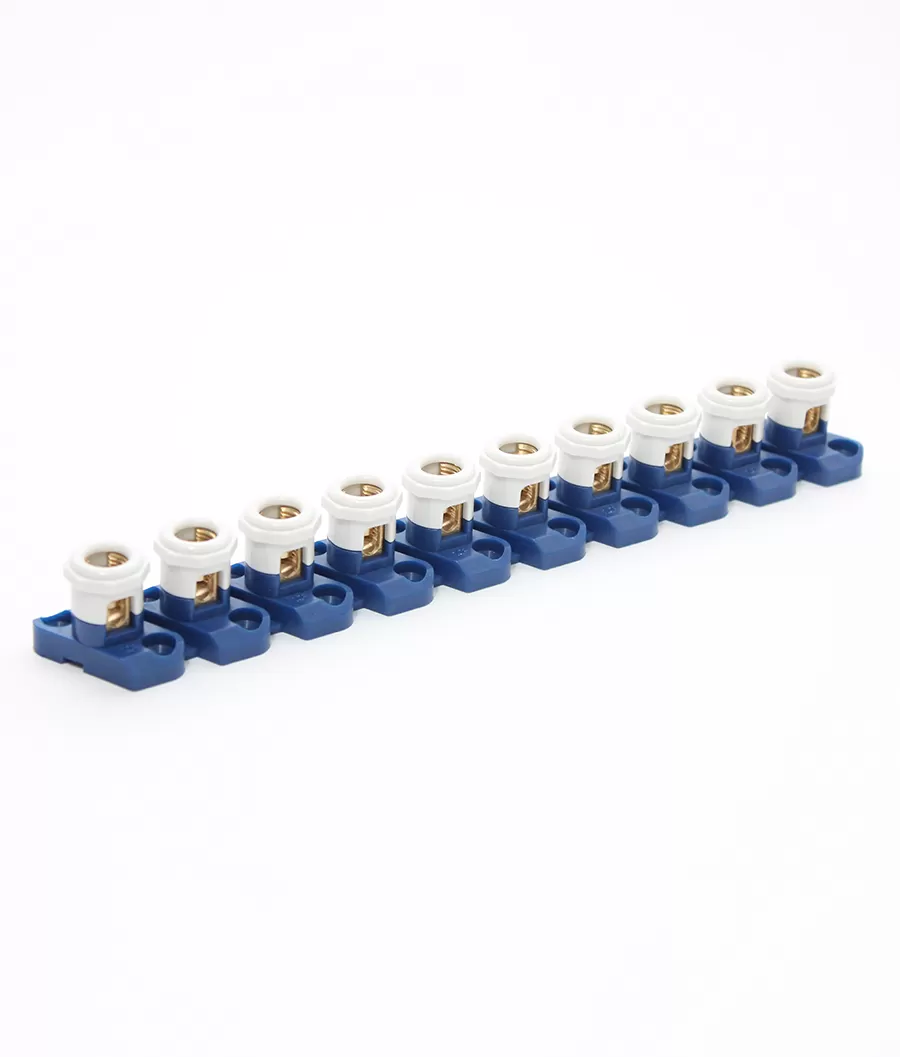

10 Poles Unipolar Terminal Blocks(pic4)
