H Type Terminal Block -PP 12 Pin/Ways

Antong’s 12-way H type terminal block features PP insulation for safe and organized wire connections. Ideal for electrical panels and lighting systems, it offers reliable screw-type terminals in a compact design.

  • Item No.

    SP001
  • Shell plastic material

    PE
  • Glow Wire Test

  • Standard Color

    White, Black

Terminal Block- H Type- PP

•Recessed screws and tubular contacts provide added safety and help prevent short circuits

• Tubular contacts connect stripped, un-terminated solid or stranded wire directly to each contact

• Integrated wire protectors prevent twisting and breakage of stranded wire during connection

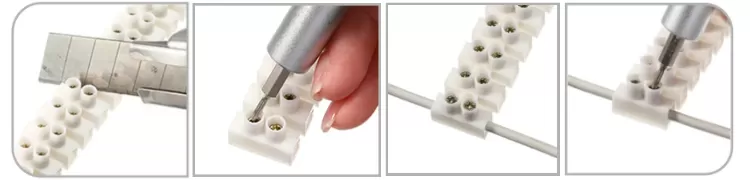

• Modular 12-circuit design can be cut into smaller sections, or stacked end-to-end

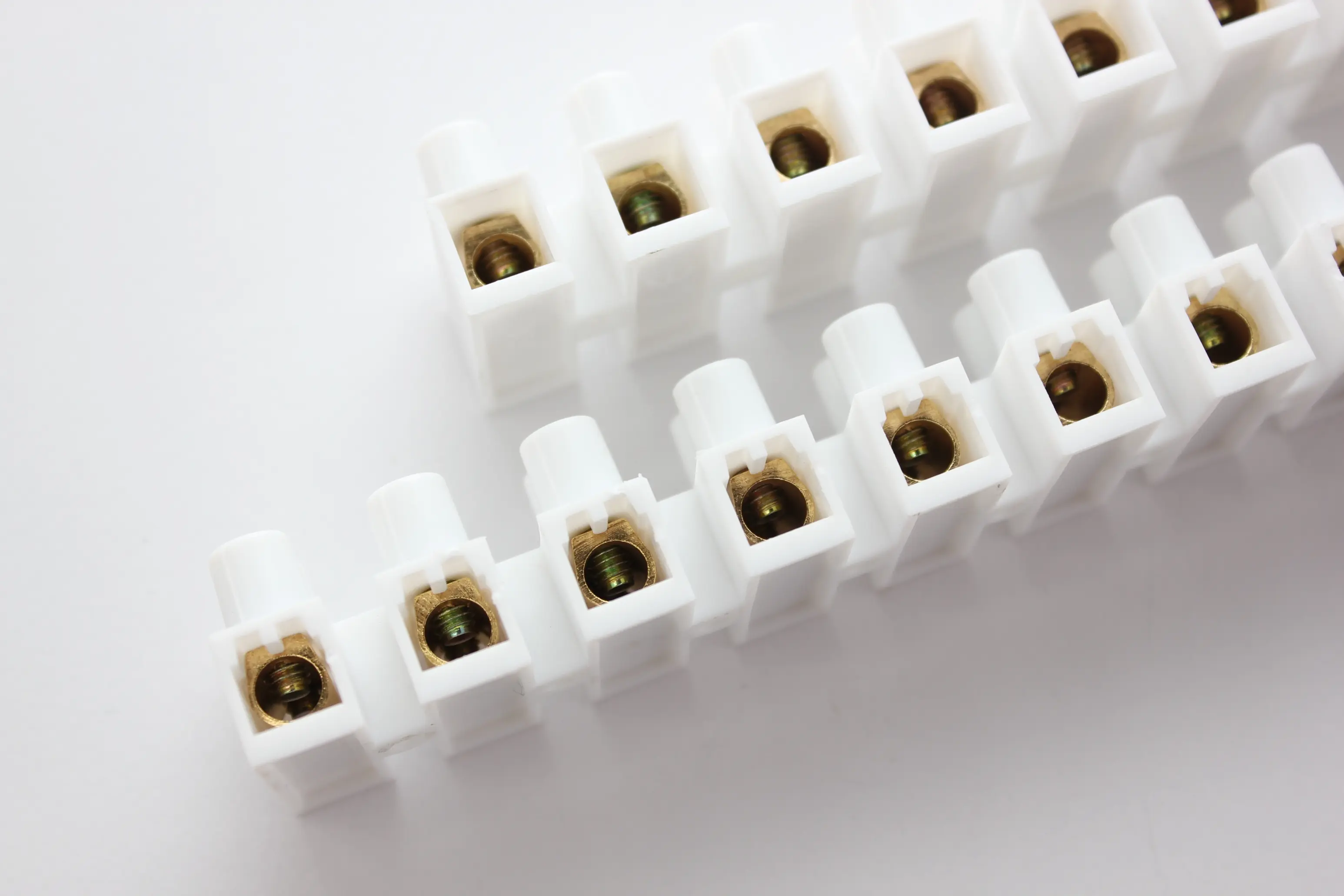

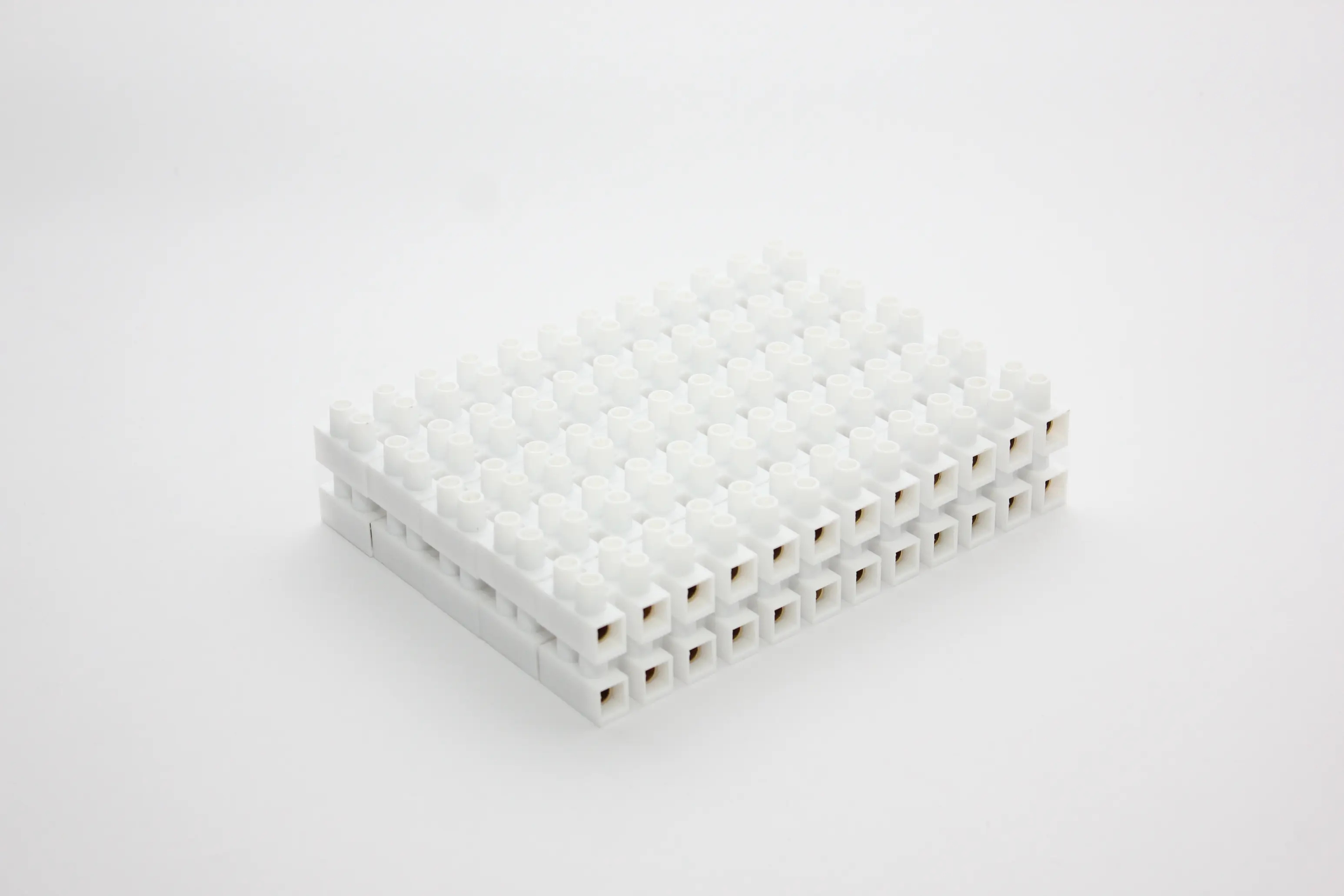

H Type Terminal Block -PP 12 Pin/Ways(pic1)

Specification

CategoryFeed Through Terminal Block
Style H Type
Shell plastic material PP: Polypropylene
Polypropylene featuresGood insulation, fire-resistance
Conductor MaterialBrass
Screw MaterialSteel, zinc plated
Means of connectionScrew fixed
Rated Voltage (V)400V-450V
Rated Current (A)3A, 6A, 10A, 15A, 20A, 30A, 60A, 80A, 100A
Glow Wire Test:850℃
Available ColorNatural white, black, red, green, yellow, blue
Production ProcessInjection molding

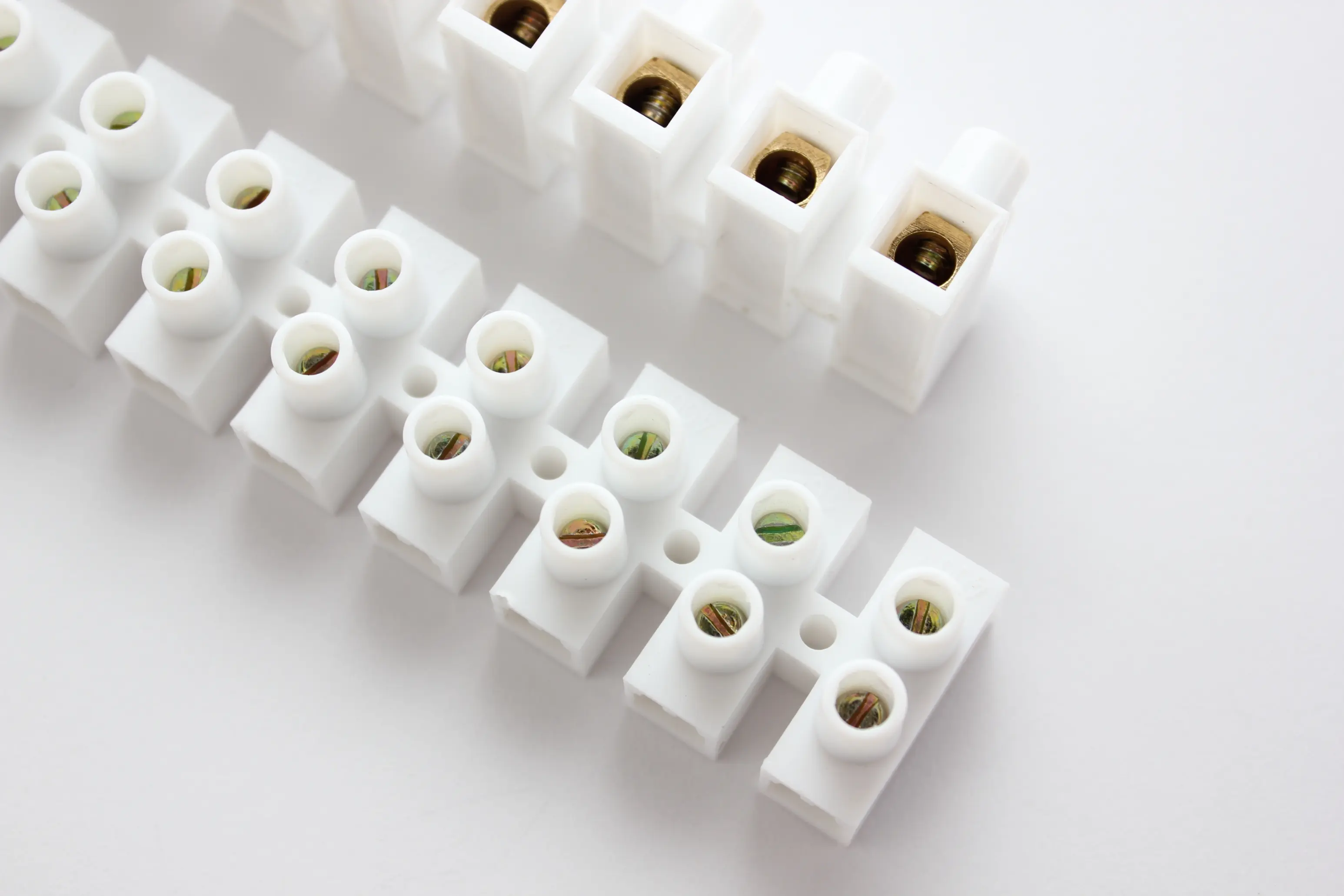

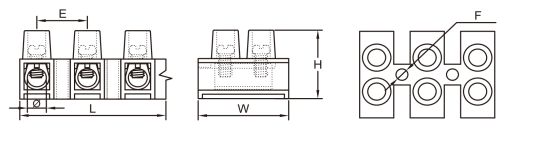

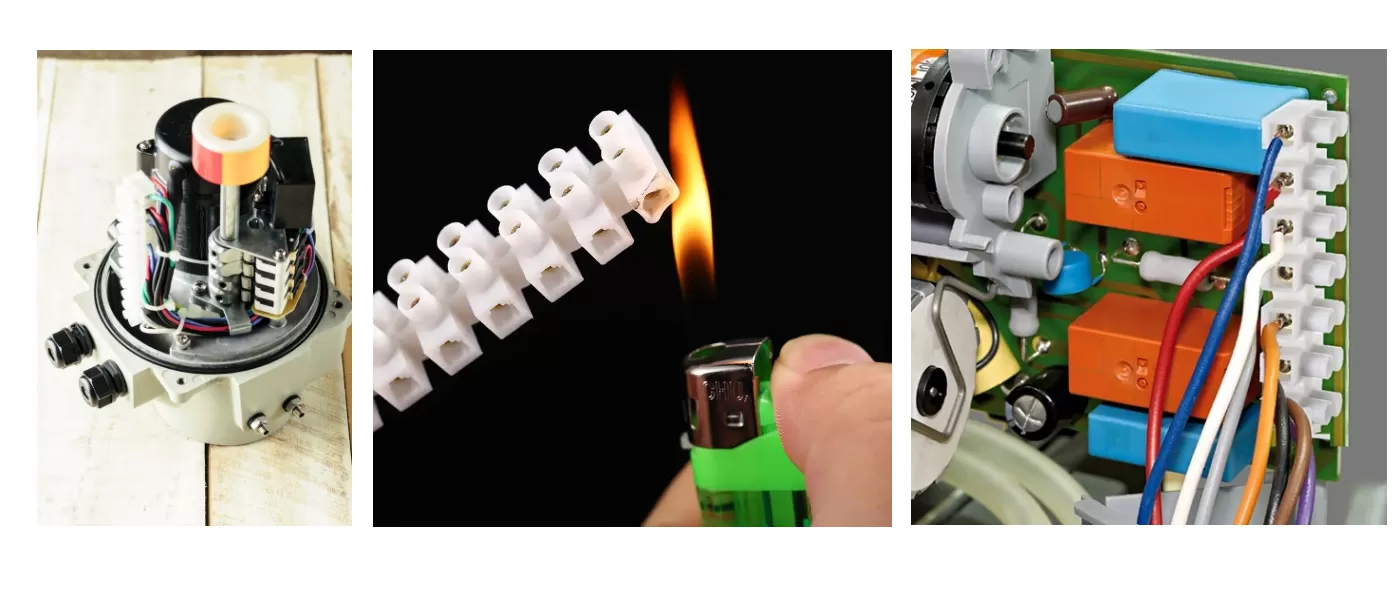

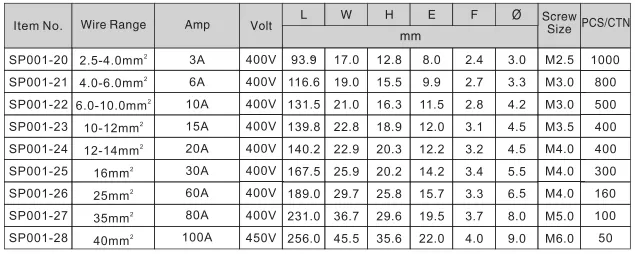

H Type Terminal Block -PP 12 Pin/Ways(pic2)H Type Terminal Block -PP 12 Pin/Ways(pic3)ApplicationH Type Terminal Block -PP 12 Pin/Ways(pic4)

Supply Ability & Additional Information

Productivity40, 000, 000PCS/Year
TransportationOcean,Air
Place of OriginChina
Supply Ability40, 000, 000PCS/Year
PortNingbo Port
Payment TypeT/T
Incoterm FOB,EXW,CIP






H Type Terminal Block -PP 12 Pin/Ways(pic5)

Frequently Asked Questions

1. Can I ask for sample?

Sure thing! Just let your sales consultant know which sample you need and your address, we will arrange rest of things for you.

2. If I want get a products price list, where I can get it?

Very sorry to tell you we are not allowed to send full price list to any client due to company regulation, but also some reasonble facts.

Products prices are based on various raw material price, but those raw material prices are always unstable at all, so the price wouldn’t be fixed alll the time. Our sales will be very gladly to update product price with any potential client from us.

3. My product needs put our own logo on product or packing, what should I do?

If you want print/stick own logo on products or packing, please firstly let your sale consultant know it, and the sales will confirm it with our technician from factory side. Without any technique difficulty, you can provide related logo documents to us.

4. How many years Antong starts operate factory to produce terminal blocks?

Since 1989, AnTong has started factory operation, it’s almost 35 years.
