Brass Bar Type 2
Antong’s brass earthing bar is designed for safe and efficient grounding in electrical distribution systems. Made from high-conductivity brass with multiple terminals, it supports reliable grounding for panels, switchboards, and control units.

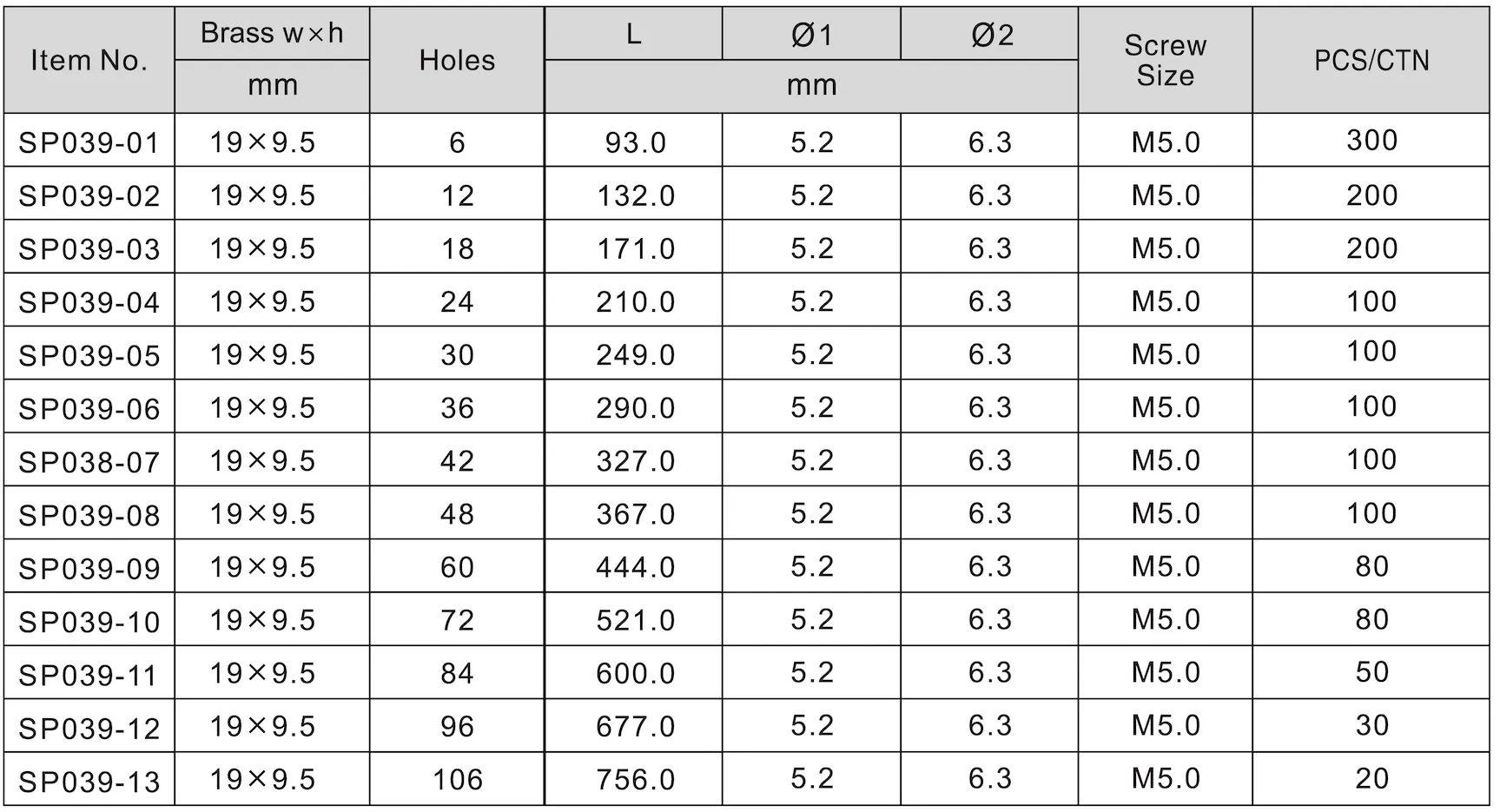

ItemNo
SP039.01~SP039.13Contact Material
BrassTermination Method
Screw DownWorking Temperature
℃Material
BrassNumber of Ways
Depends on number of holesInserts
BrassHousing
BrassScrews
Steel, Zinc Plated
- Product Details
Terminal Ground Bar Screw Block Barrier Brass
• Brass terminal blocks and brass neutral links are offered in lengths of up to 1 meter.
• Additionally, we produce 4-way, 8-way, and 12-way brass neutral links, available with both tin-plated and nickel-plated finishes.
• Customization according to customer specifications and requirements is also available.
• Our range includes brass terminal blocks and neutral bars suitable for various panel boards, switch gears, and electrical switchboards.
• With higher electrical conductive than those irons or alloy metal.
• Application: Power distribution cabinets, distribution boxes, electrical equipment cabinets, lighting boxes, etc
Product Attributes
| Brand | Safetypass |
| Service | OEM,ODM available |
| Style/feature | Screw Terminal, Screw |
| Type | With cover |
| Insulator | Yes |
| Means of connection | Screw fixed |
| Cover plastic material | PA: Polyamide |
| PA features | Good insulation, heat resistance, fire-resistance |
| Shell option | PA |
| Working Temperature | -40℃ to 110℃ |
| Number of poles | Depends on size |
| Customized size | Accept |
| Number of Contacts | depends on size |
| Tolerance | ± 0.1mm |
| Design Structure | Fixed |
| Type of production | Manufacturing |
Notes: Sizes can be made as requested
Supply Ability & Additional Information
| Productivity | 100, 000PCS/Day |
| Transportation | Ocean,Air |
| Place of Origin | China |
| Port | Ningbo Port, Shanghai Port |
| Payment Type | T/T |
| Incoterm | FOB,EXW,CIP |
We specialize in offering our clients a wide range of Brass Neutral Links. Supported by a team of specialists, these links are crafted using top-grade Brass and advanced technology by our skilled professionals. Our provided links are meticulously designed to comply with industry standards. Furthermore, they are available in various specifications to cater to the diverse needs of our esteemed clients. Our range undergoes rigorous testing on various parameters to ensure high quality.
