Steel Conductor U Type Terminal Block-PP
Antong’s U-type terminal block features a steel conductor and PP insulated housing, offering reliable wire connections for low-voltage electrical systems. Ideal for control boxes, lighting circuits, and equipment wiring.
Item No.
SP003Shell plastic material
PPGlow Wire Test
850℃Standard Color
White, Black
- Product Details

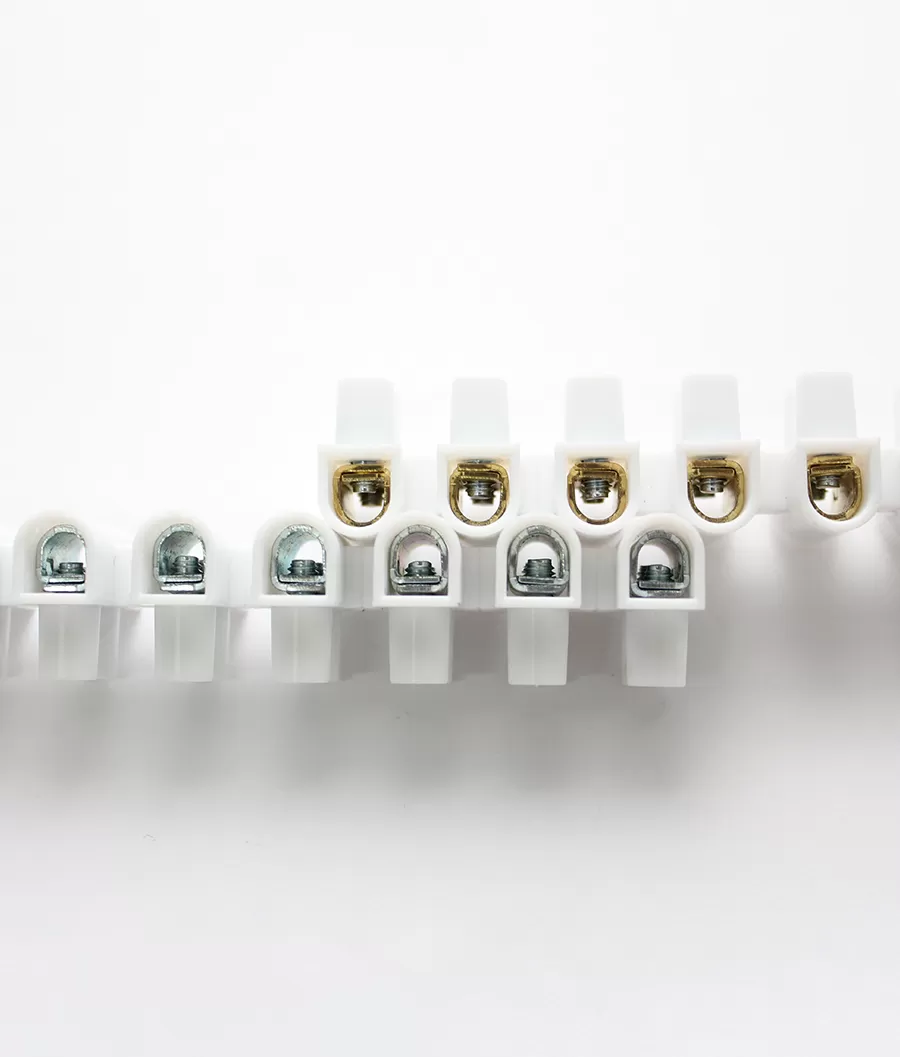

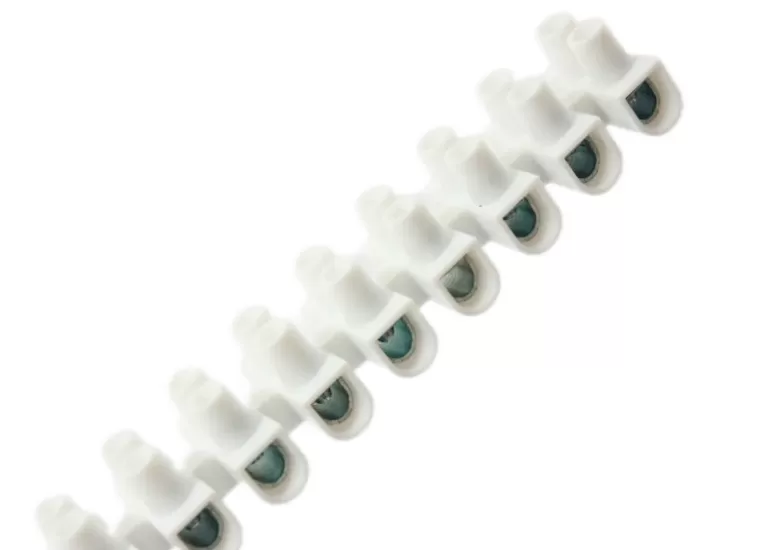

Terminal Block- U Type- PP
•Recessed screws and tubular contacts provide added safety and help prevent short circuits
• Tubular contacts connect stripped, un-terminated solid or stranded wire directly to each contact
• Integrated wire protectors prevent twisting and breakage of stranded wire during connection
• Modular 12-circuit design can be cut into smaller sections, or stacked end-to-end

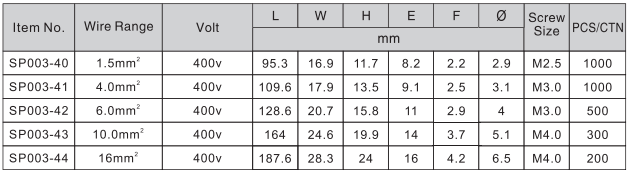

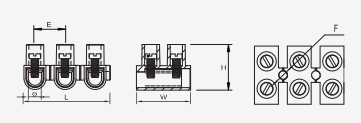

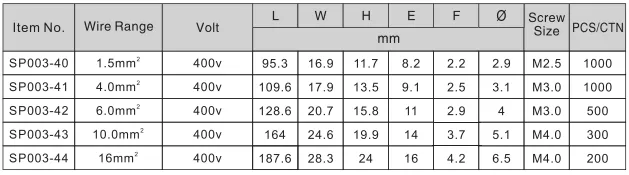

Specification
| Category | Feed Through Terminal Block |
| Style | U Type |
| Shell plastic material | PP: Polypropylene |
| Polypropylene features | Good insulation, fire-resistance |
| Conductor Material | Steel, Zinc or Brass Plated |
| Screw Material | Steel, zinc plated |
| Means of connection | Screw fixed |
| Rated Voltage (V) | 400V |
| Glow Wire Test: | 850℃ |
| Standard Color | White, Black |
| Production Process | Injection molding |
Supply Ability & Additional Information
| Productivity | 40, 000, 000PCS/Year |
| Transportation | Ocean,Air |
| Place of Origin | China |
| Supply Ability | 40, 000, 000PCS/Year |
| Port | Ningbo Port |
| Payment Type | T/T |
| Incoterm | FOB,EXW,CIP |
Frequently Asked Questions
1. Can I ask for sample?
Sure thing! Just let your sales consultant know which sample you need and your address, we will arrange rest of things for you.
2. If I want get a products price list, where I can get it?
Very sorry to tell you we are not allowed to send full price list to any client due to company regulation, but also some reasonble facts.
Products prices are based on various raw material price, but those raw material prices are always unstable at all, so the price wouldn’t be fixed alll the time. Our sales will be very gladly to update product price with any potential client from us.
3. My product needs put our own logo on product or packing, what should I do?
If you want print/stick own logo on products or packing, please firstly let your sale consultant know it, and the sales will confirm it with our technician from factory side. Without any technique difficulty, you can provide related logo documents to us.

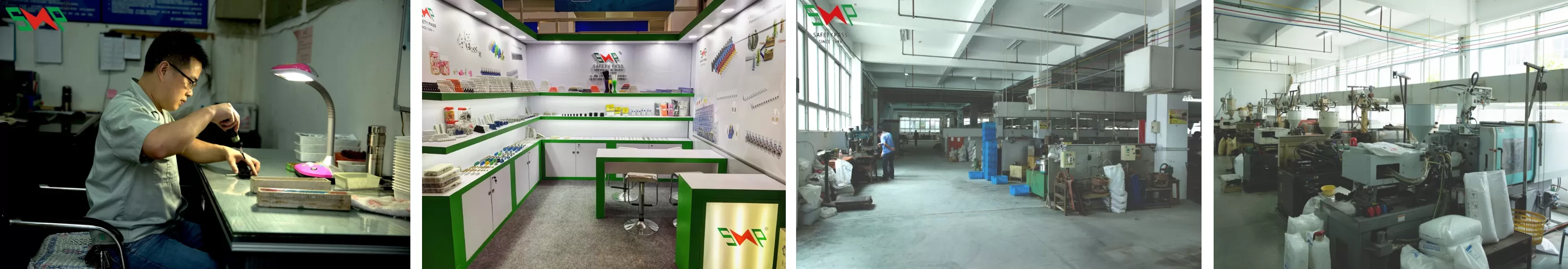

4. How many years Antong starts operate factory to produce terminal blocks?
Since 1989, AnTong has started factory operation, it’s almost 35 years.
